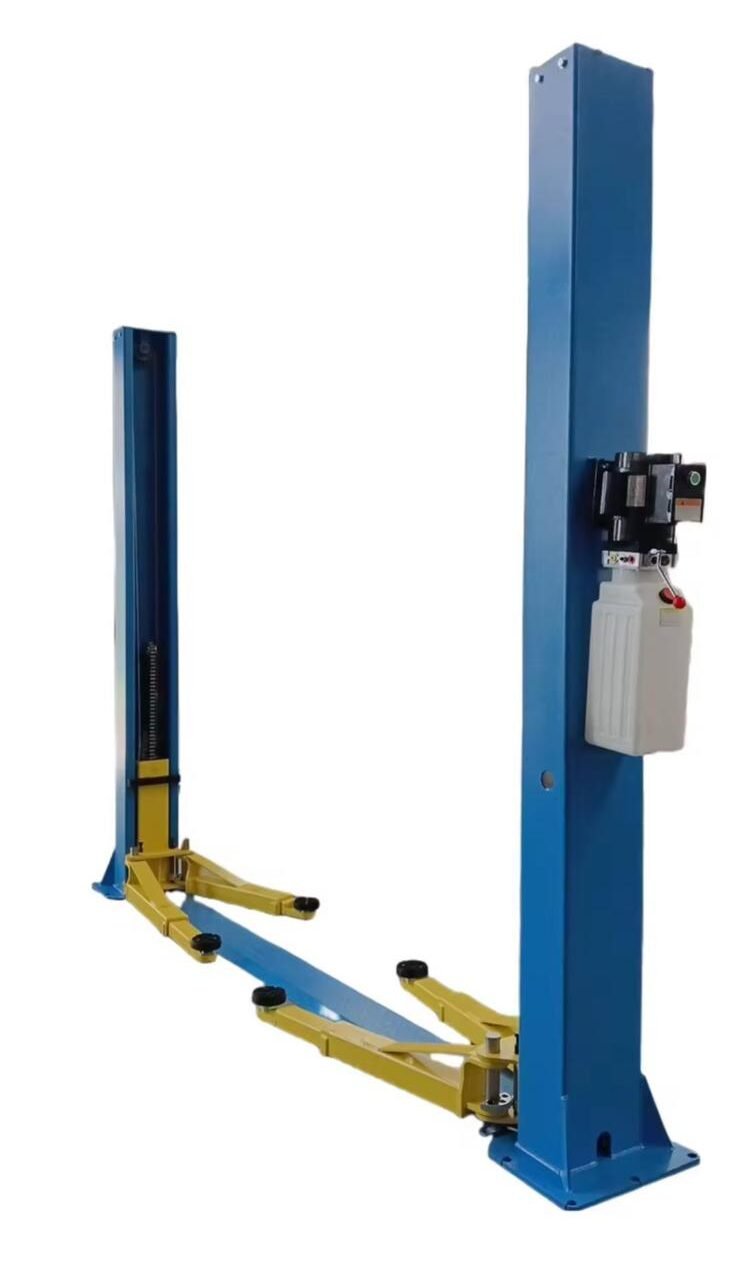

KVL-2POST

MODEL: KVL-2POST Features The optional triple-stage arms combination make the lift can accommodate a wide range of vehicles from Smart to SUV The arm locks engage automatically when the lift is raised and disengage when fully lowered Top and bottom pulley mount design avoid pulley from coming off ETL certified for Hydraulic Pump Power Unit

• Specifications
• Capacity: 10,000 lbs
• Overall Height: 107-1/5”
• Width between posts: 109”
• Drive Trough Width: 101-3/5”
• Max lifting height: 72-4/5”
• Min pad height: 4-3/10”
• Front arm reach: 30-2/5” to 44-1/2”
• Rear arm reach: 30-2/5” to 44-1/2”
• Power supply: 220V/60HZ
